Boston by Danfoss Liquid Cooling
Boston by Danfoss Royal EHW194 Water Liquid Cooling Hose
Engineeredto keep you cool
Royal EHW194
Liquid cooling is an innovative technique using water as a cooling medium to help keep computer processor temperatures low in data center applications. Danfoss designed Boston Royal with this emerging technology in mind.
UL 94 V-0 rated and offering superior flexibility and kink resistance, this hose was designed to maneuver in tight spaces to simplify installation and maintenance. Offered in a variety of sizes and colors, with approved Danfoss fittings — we have made it easy to emerge into this new market.
![](pic/EHW194-UL94VO-HOSE.jpg)
Boston by Danfoss Royal EHW194 Water Liquid Cooling Hose
Boston by Danfoss Liquid Cooling
Engineeredto keep you cool
Royal EHW194
![](../pic/pdf-.jpg)
Markets/Applications
- Data centers
- Electronic component cooling
- Telemedicine
- Cryptocurrency mining
- IT thermal management
Sells Against
- Parker Push-Lok 801
- Parker Push-Lok 804
- Parker 7092 GST II
- Parker 7395 E-Z Form GS
- Contitech FlexAGrip
Features
- UL 94 V-0 rated
- Fire resistant cover
- Smooth-finish cover, low CoF
- Multiple color offerings
- Flexible with torsional strain and kink resistance
Order Fulfillment
- Made to Stock
Royal EHW194
Liquid cooling, using water as a solution, helps to eliminate the overheating of devices in data center applications.

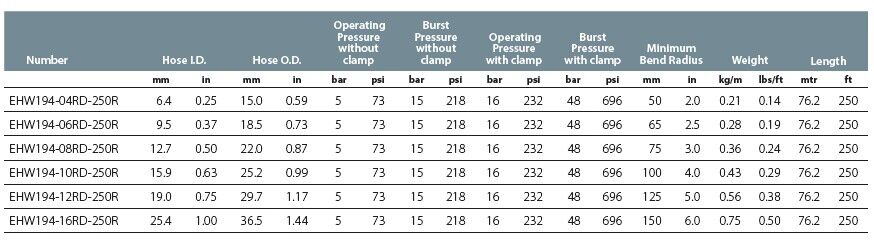

![](pic/EHW194-HOSE-ORDER-NUMBER.jpg)
Danfoss part number |
I.D.
(mm) |
O.D.
(mm) |
W.P.
(bar) |
W.P.
(PSI) |
B.P.
(bar) |
B.P.
(PSI) |
M.B.R.
(mm) |
EHW194-04 |
6.4 |
12.7 |
21 |
304.5 |
84 |
1218 |
50 |
EHW194-06 |
9.5 |
16.5 |
21 |
304.5 |
84 |
1218 |
65 |
EHW194-08 |
12.7 |
19.2 |
21 |
304.5 |
84 |
1218 |
75 |
EHW194-10 |
15.9 |
23.5 |
21 |
304.5 |
84 |
1218 |
100 |
EHW194-12 |
19 |
26 |
21 |
304.5 |
84 |
1218 |
125 |
EHW194-16 |
25.4 |
34.6 |
21 |
304.5 |
84 |
1218 |
150 |
Construction
Tube : Synthetic EPDM Rubber
Reinforcement: 2 -ply textile
Cover : Fire retardant Synthetic EPDM Rubber
Colors: Black (BK), Blue (BU),Grey (GY), Red (RD)
Operating Temperature : -40°C to +140°C (-40°F to +284°F)
Certifications: UL 94 V-0 rated
Packaging: 250 ft. reels
Type of couplings
- Danfoss 1G crimp fittings
- Danfoss 100B socketless fittings
- Danfoss quick disconnects
Contact coupling manufacturer for attachment procedure and other coupling recommendations
Part Number MFG |
BU |
Special |
Desc |
MOQ |
Unit |
接头 |
EHW194-04BK |
IH |
Industrial Hose |
EPDM HOSE |
1000 |
MT |
|
EHW194-06BK |
IH |
Industrial Hose |
EPDM HOSE |
1000 |
MT |
|
EHW194-08BK |
IH |
Industrial Hose |
EPDM HOSE |
1000 |
MT |
|
EHW194-10BK |
IH |
Industrial Hose |
EPDM HOSE |
1000 |
MT |
|
EHW194-12BK |
IH |
Industrial Hose |
EPDM HOSE |
1000 |
MT |
|
EHW194-16BK |
IH |
Industrial Hose |
EPDM HOSE |
1000 |
MT |
|
EHW194-04BU |
IH |
Industrial Hose |
EPDM HOSE |
1000 |
MT |
|
EHW194-06BU |
IH |
Industrial Hose |
EPDM HOSE |
1000 |
MT |
|
EHW194-08BU |
IH |
Industrial Hose |
EPDM HOSE |
1000 |
MT |
|
EHW194-10BU |
IH |
Industrial Hose |
EPDM HOSE |
1000 |
MT |
|
EHW194-12BU |
IH |
Industrial Hose |
EPDM HOSE |
1000 |
MT |
|
EHW194-16BU |
IH |
Industrial Hose |
EPDM HOSE |
1000 |
MT |
|
EHW194-04RD |
IH |
Industrial Hose |
EPDM HOSE |
1000 |
MT |
|
EHW194-06RD |
IH |
Industrial Hose |
EPDM HOSE |
1000 |
MT |
|
EHW194-08RD |
IH |
Industrial Hose |
EPDM HOSE |
1000 |
MT |
|
EHW194-10RD |
IH |
Industrial Hose |
EPDM HOSE |
1000 |
MT |
|
EHW194-12RD |
IH |
Industrial Hose |
EPDM HOSE |
1000 |
MT |
|
EHW194-16RD |
IH |
Industrial Hose |
EPDM HOSE |
1000 |
MT |
|
Number
EHW194-04RD-250R
EHW194-06RD-250R
EHW194-08RD-250R
EHW194-10RD-250R
EHW194-12RD-250R
EHW194-16RD-250R
![](pic/Hose-assembly-instructions.jpg)
![](../pic/pdf-.jpg)
- Boston by Danfoss Royal EHW194 Water Liquid Cooling Hose
Boston by Danfoss Liquid Cooling
Engineeredto keep you cool
Royal EHW194

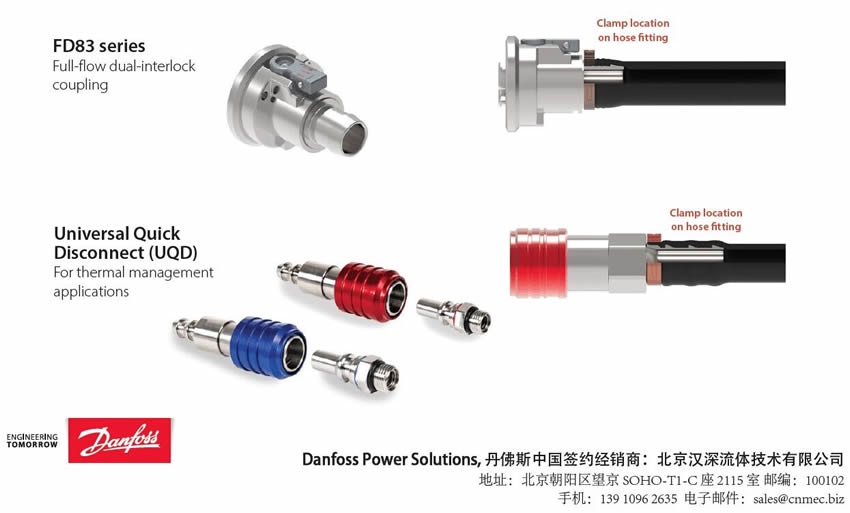

- Fitting assembly with Boston EHW194 and EHW094 hose
Hose assembly instructions
Socketless, FD83 and UQD connectors
|
